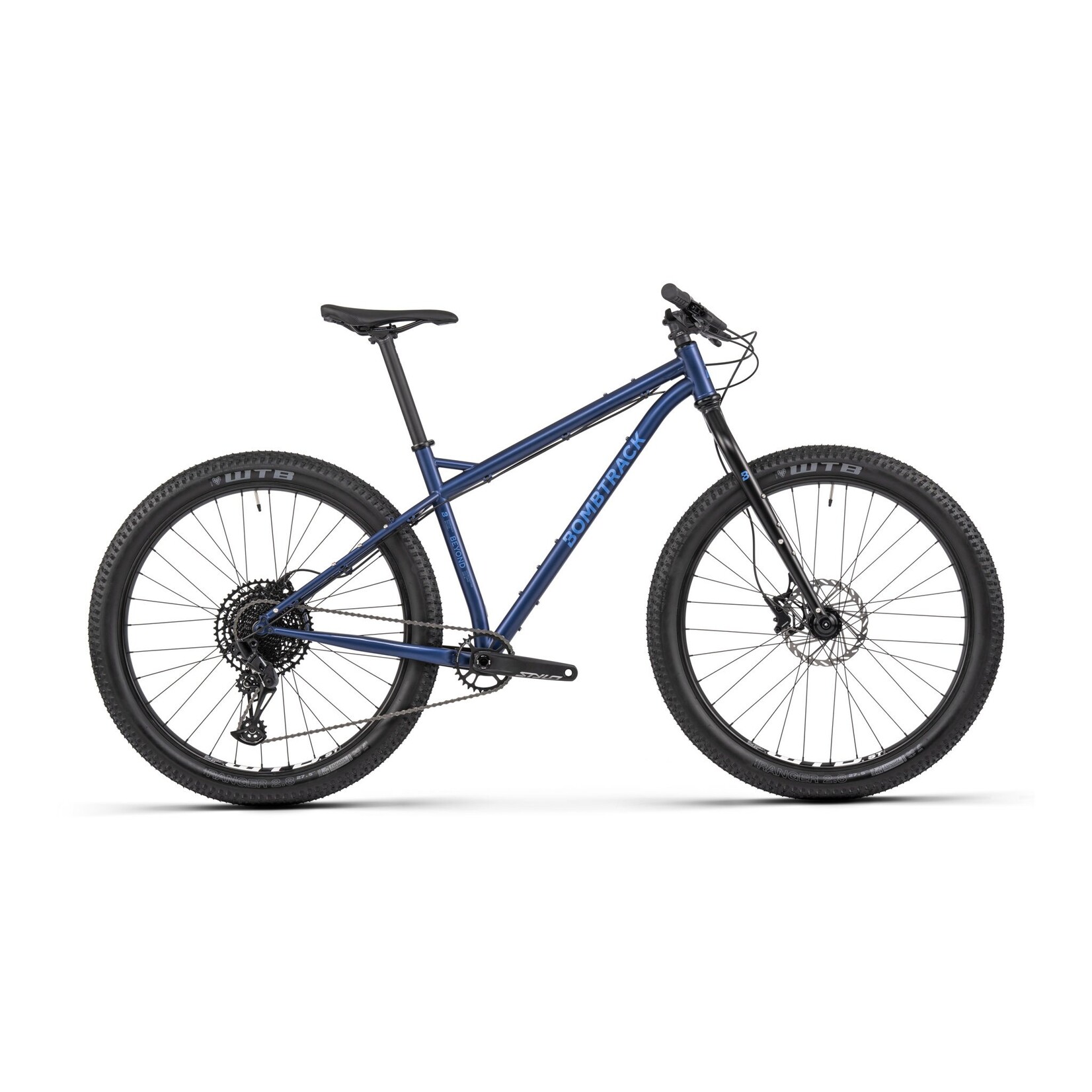

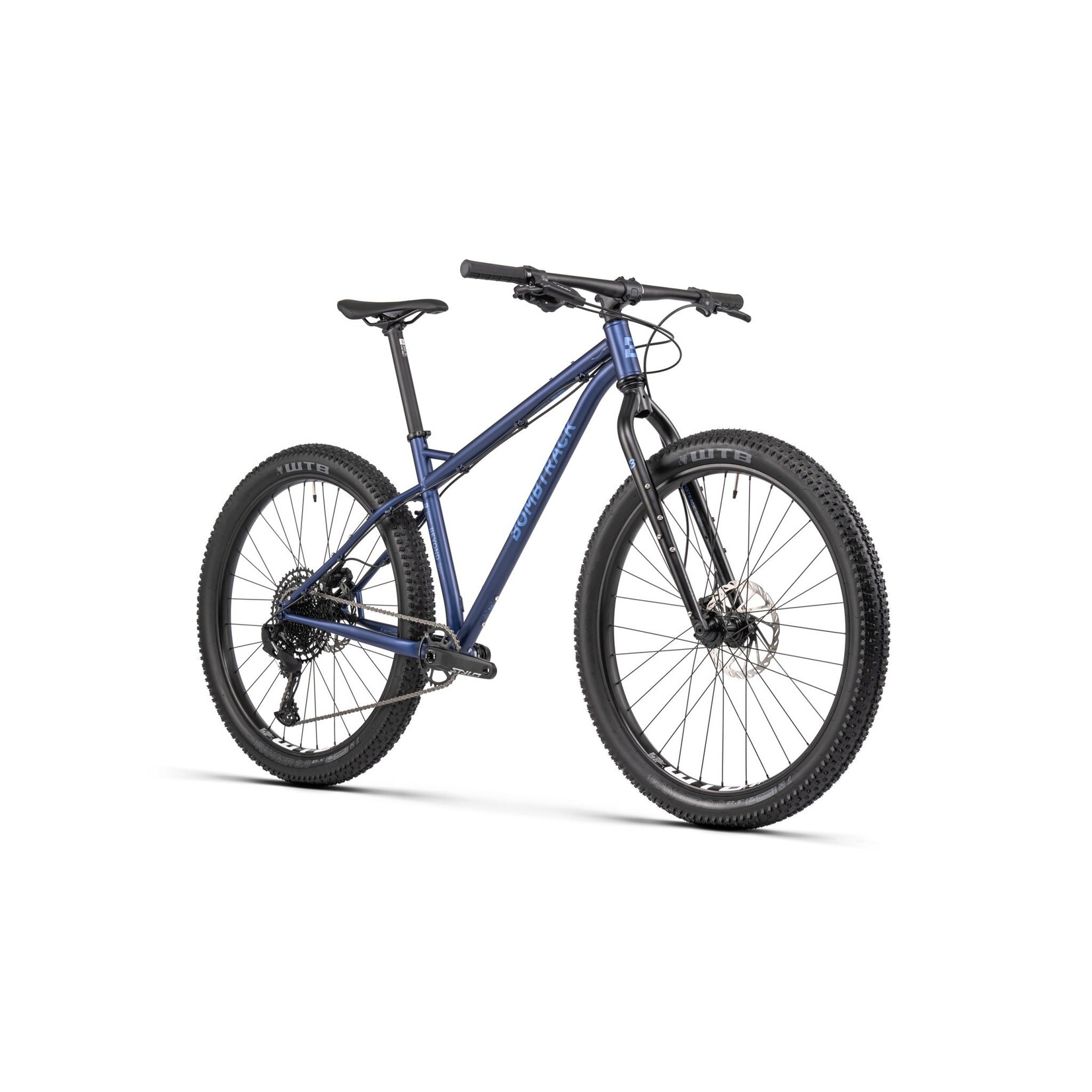

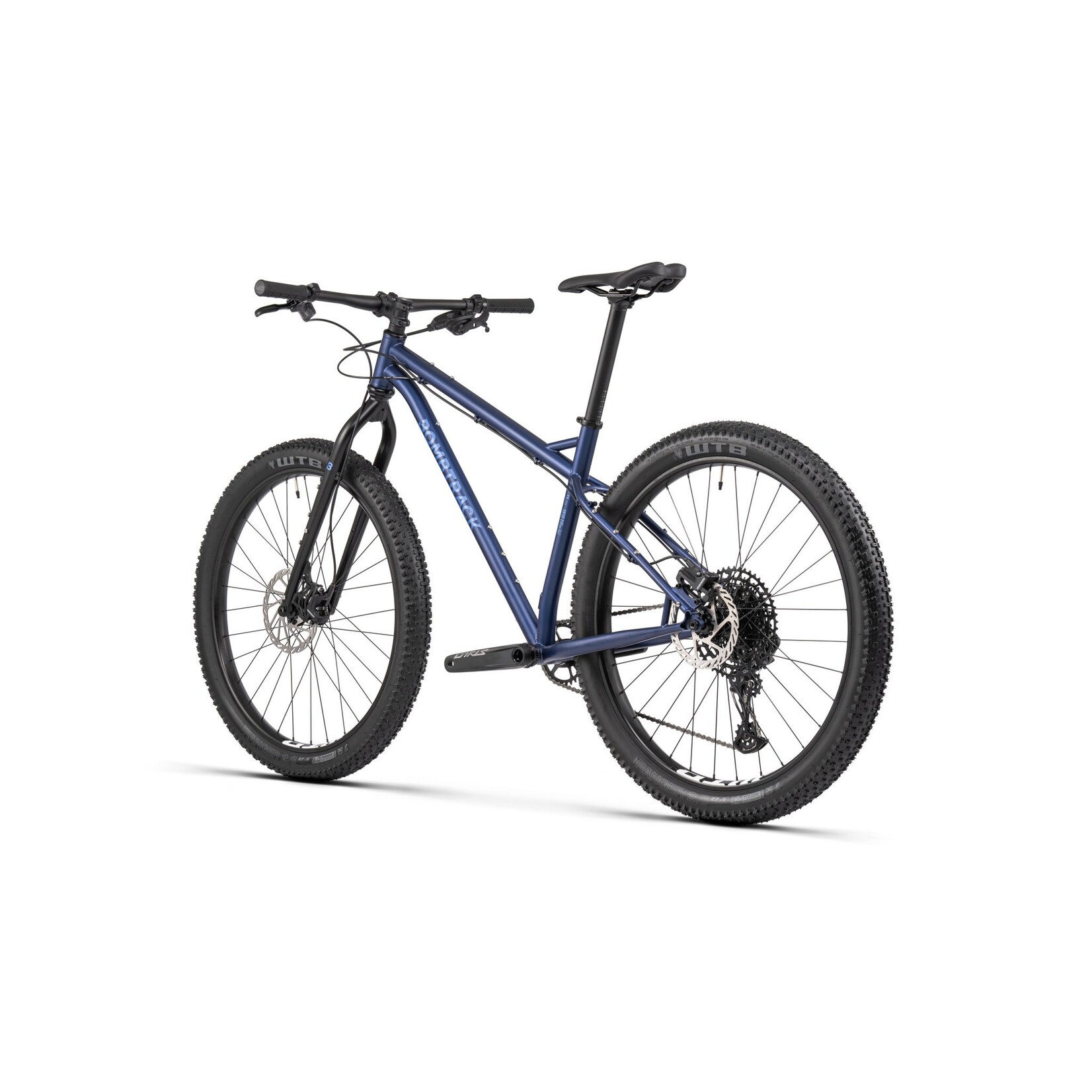

If you’re looking for a rigid adventure bike that you can also chuck around in the woods and isn’t phased by technical singletrack, then our Beyond+ is spot on. Starting with a double butted steel suspension corrected frame with a quad-butted ovalized downtube and matching Seido Steel BPS fork, this is the 4 x 4 of the Beyond line, capable of swallowing huge 27.5 x 2.8’’ WTB Ranger rubber on wide 35 mm rims for that go anywhere experience. Both frame and fork come with multiple mounting points, including offset triple cage mounts on the seat stays and forward-facing mounts on the fork for maximum clearance. SRAM SX Eagle will get you wherever you are going with its 11 - 50T cassette and Sram Level brakes with a 200 mm front rotor will haul you and your cargo back down to earth if you get a little carried away. Load it up and head off anywhere.
Color 1 | Matt Blue |
Color 2 | - |
Frame | 4130 double butted crmo, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell ¹ |
Fork | Seido BPS 4130 crmo, double butted blades, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

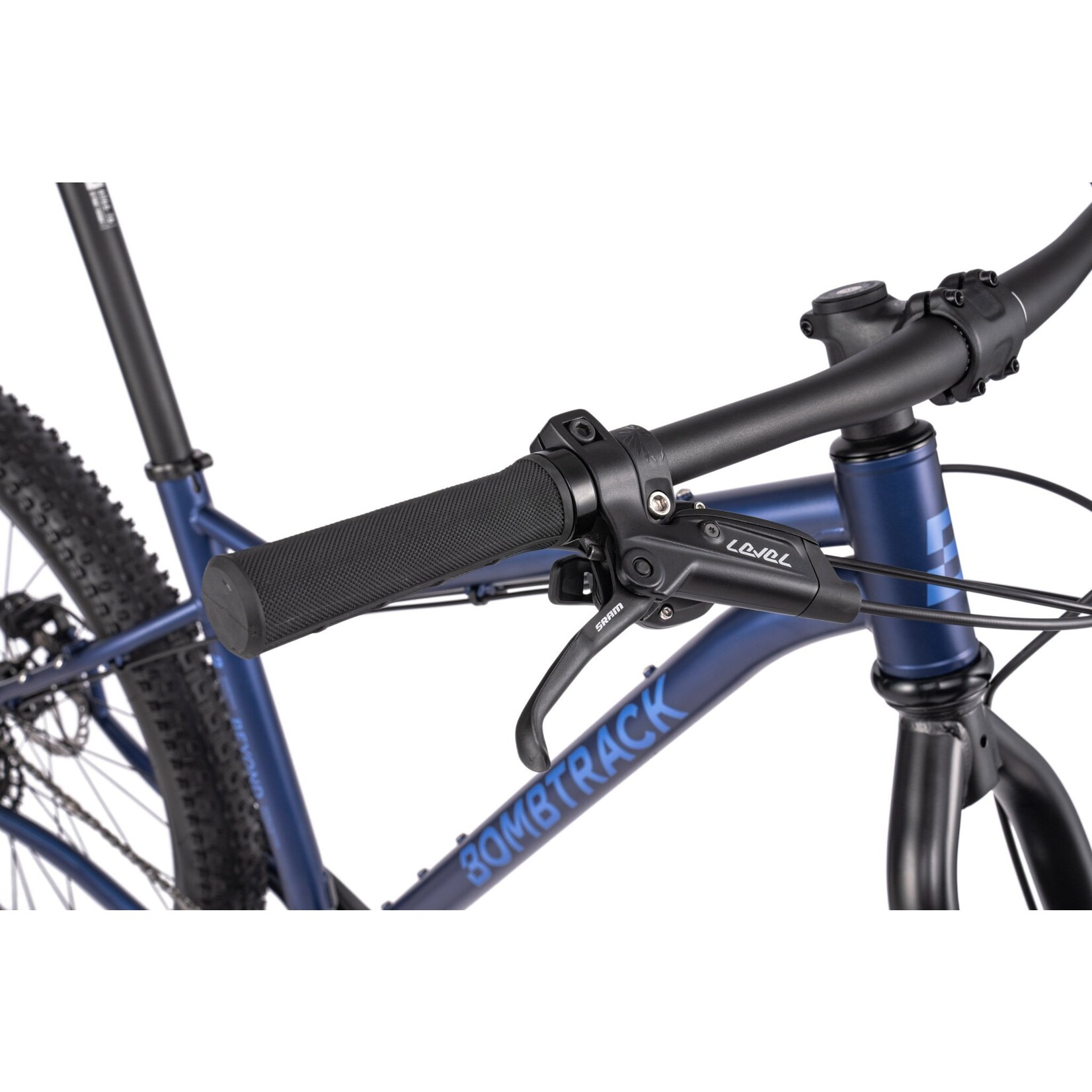

Handlebar | Bombtrack Trail flat bar, 31.8 mm, 9° backsweep, 4° upsweep, 7 mm rise |
Grips | Bombtrack Scroll grips |

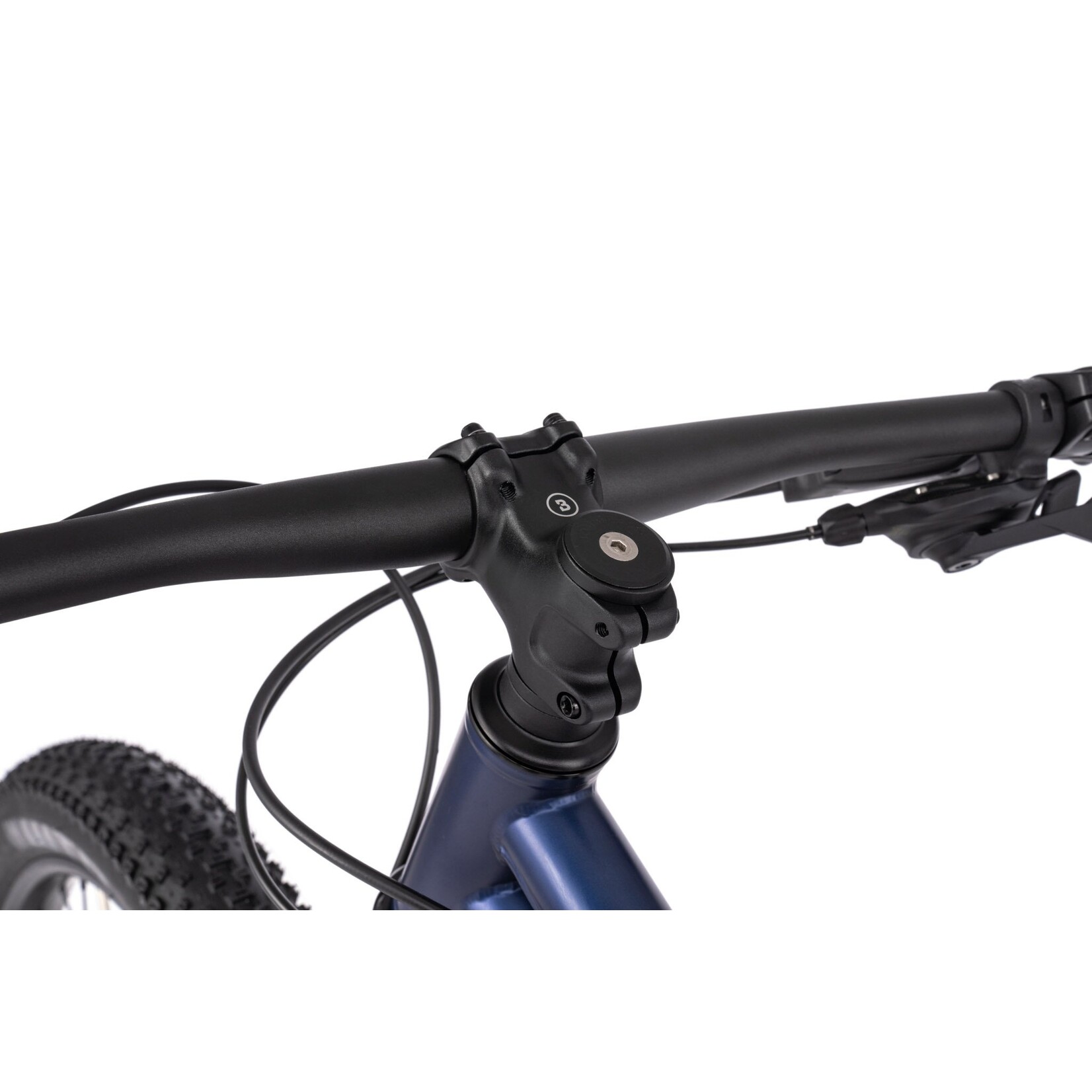

Stem | Bombtrack Tramp forged aluminium stem, 3° |
Headset | Sealed semi integrated / external aheadset, 1.1/2'' - 1.1/8'' |
Levers | Sram Level hydraulic |
Shifter | Sram SX-Eagle 12-speed shifter |
Brakes | Sram Level hydraulic disc brakes |
Rotor | Sram G2 Cleansweep 180 mm front and 160 mm rear rotor |

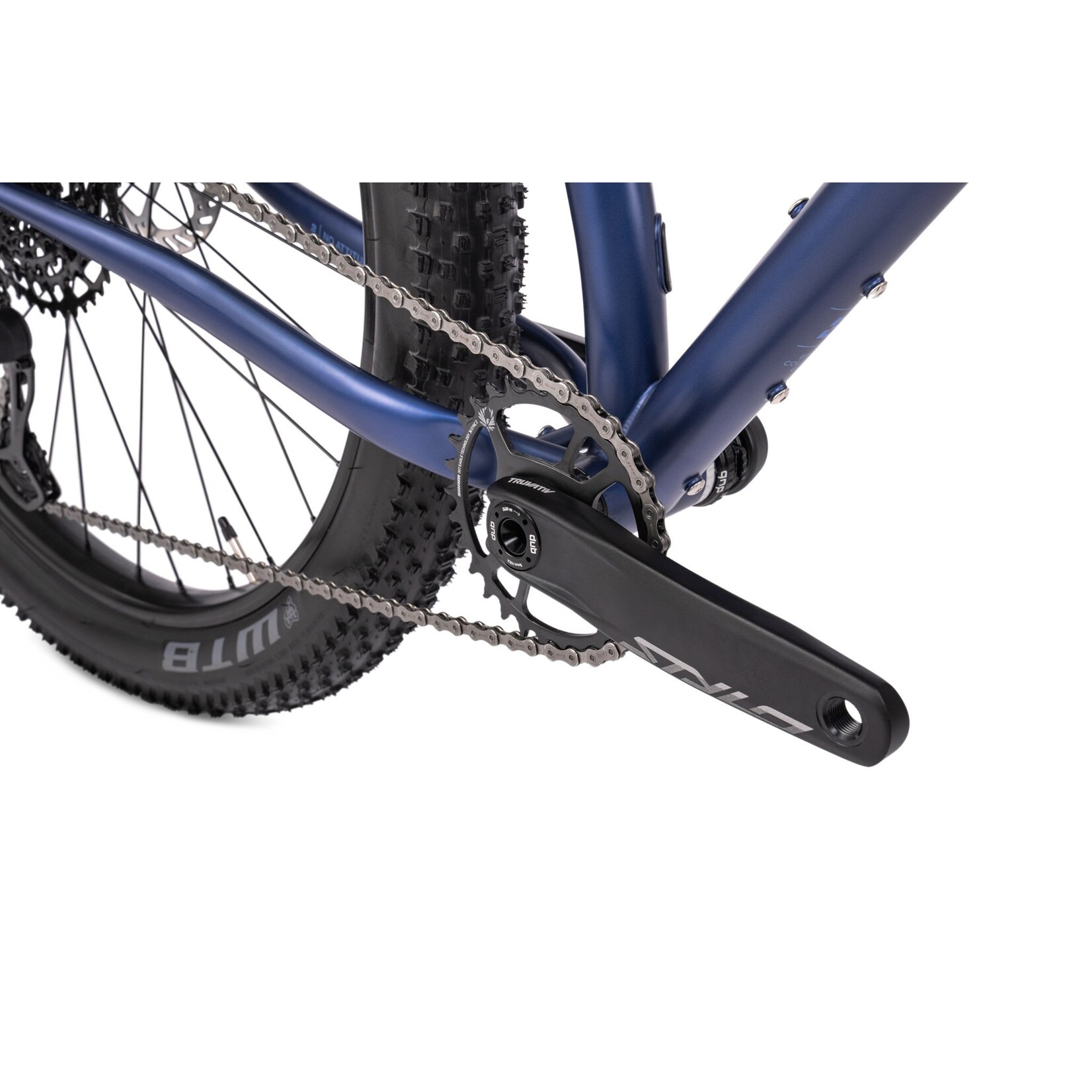

Crankset | Truvativ Stylo 6K aluminium crank, Boost DUB |
BB | Sram DUB BSA 73 mm |
Pedals | - |
Chain | Sram NX Eagle chain, 1/2'' x 11/128'', 116L |
Chainring | Sram Eagle X-Sync 2, narrow-wide, 30 T |

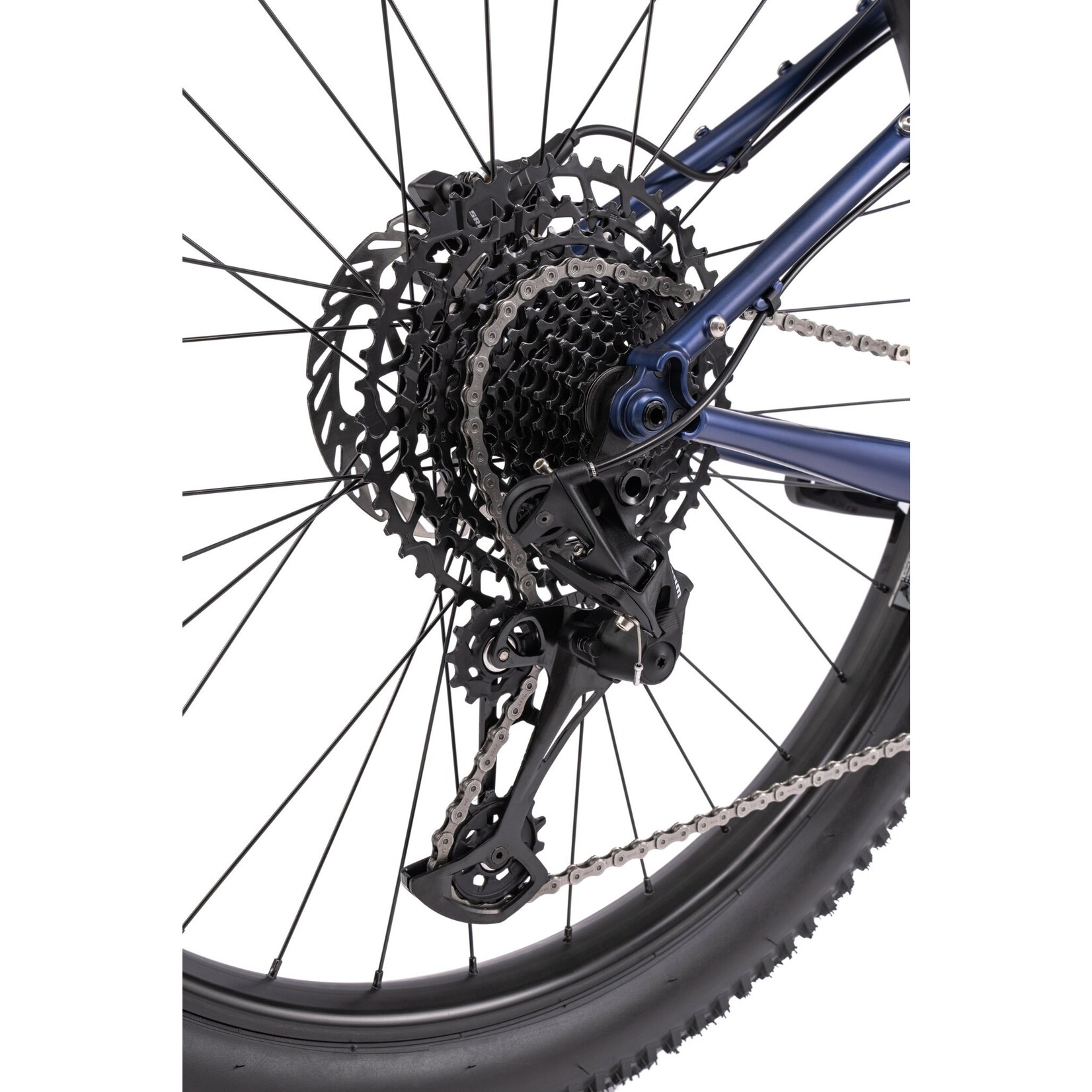

Cassette | Sram PG-1210 Eagle 12-speed, 11 - 50 T |
Front derailleur | - |
Rear derailleur | Sram SX Eagle, clutch, long cage |

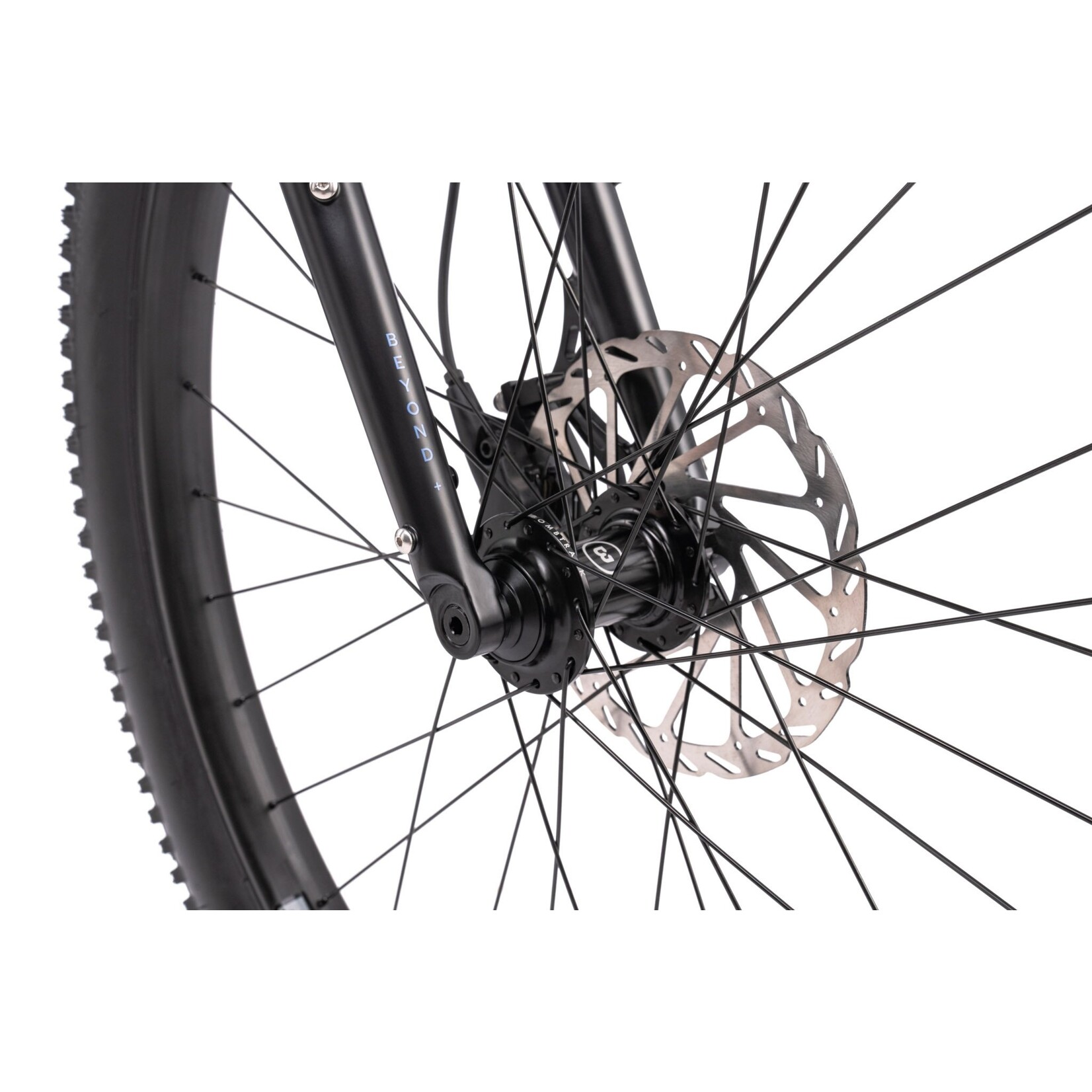

Front hub | Bombtrack Grad Boost sealed hub, 6-bolt disc |
Rear hub | Bombtrack Grad Boost sealed hub, HG driver, 6-bolt disc |
Through axle | 15 x 110 mm / 12 x 148 mm |
Front rim | WTB ST i35 double wall, TCS 2.0, 32h |
Rear rim | WTB ST i35 double wall, TCS 2.0, 32h |

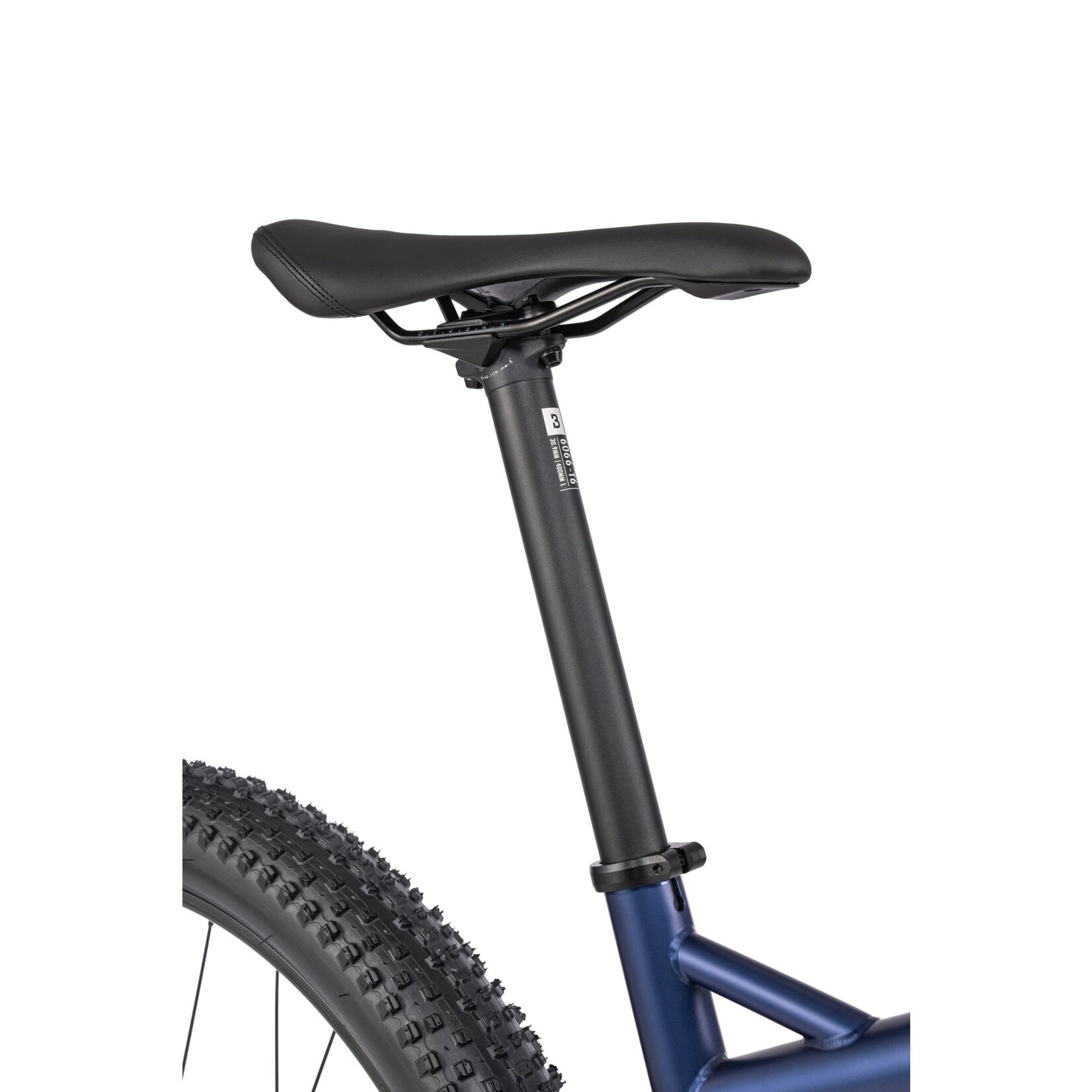

Saddle | Bombtrack Fuzz saddle |
Seat post | Bombtrack Yew aluminium seatpost, 30.9 mm x 400 mm |
Seat clamp | Bombtrack Origin 34.9 mm |
Front tire | WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready |
Rear tire | WTB Ranger TCS TOUGH / Fast Rolling 27.5'' x 2.8'', tubeless ready |
Fender | - |
Rack | - |
Kickstand | - |
Light | - |
Weight | 14.4 kg (size M) |
Weight frameset | 2910 g frame (size M, incl. TA, hanger) |
Maximum rider weight | 165 kg incl. luggage |
ASTM riding condition | 3 |
